Built as a frigate by the Karachi Shipyard & Engineering Works Karachi for the Pakistan Navy.
10 December 2009 laid down.

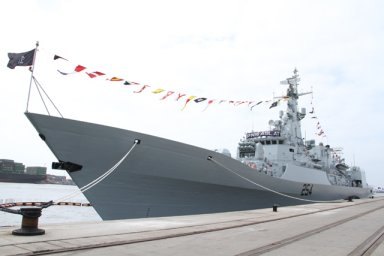

16 June 2011 launched as the PNS ASLAT (254) , Three sisters ZULFIQUAR (251), SHAMSHEER (252) and SAIF (253).
Displacement 2,500 tonnes (standard) 3,144 tonnes (full load). Dim. 123.2 x 13.8 x 3.76m. (draught)
Powered diesel electric by two Tognum MTU 12V 1163 TB 83 @ 10.5 MW and two MTU cruise diesels @ 6.6 MW. Speed 29 knots.
Range 4,000 mile.
Sensors and pro
Sensors and processing systems: SUR 17 air surveillance radar
SR-60 air/surface search radar
KH 2007 navigation radar
Type 347 CIWS fire-control radar
CIWS electro-optical director
Radar warning receiver suite
Electronic warfare & decoys: RWD-8 intercept, NJ8I-3 jammer
Decoy flare, chaff launchers
Armament: Guns: 1× 76.2 mm calibre AK–176M main gun
Type 730B CIWS (2× 30 mm 7-barrel Gatling guns)
Missiles:
1× 8-cell FM-90N SAM launcher
2× 4-cell C-802 SSM launchers
Other:
2× 3-cell ET-52C torpedo launchers
2× 6-cell RDC-32 anti-submarine rockets
Aircraft carried: 1× Harbin Z-9EC ASW helicopter
Aviation facilities: Flight deck and enclosed hangar
Complement 170
17 April 2013 commissioned.
The F-22P or Zulfiquar-class frigate (Urdu: ذوالفقار English: Sword class), is a general purpose frigate being built by Pakistan and China for the Pakistan Navy (PN). The first ship, PNS ZULFIQUAR, was handed over to the PN on 30 July 2009 and the second, PNS SHAMSHEER, on 23 January 2010. The third frigate, PNS SAIF was commissioned on 15 Sep 2011. The fourth and last frigate of F-22P series, PNS ASLAT was commissioned on 17 April 2013.
History
Pakistan had been negotiating with China for the supply of 4 frigates since the late 1990s. The contract was signed on 4 April 2006 with the conclusion of negotiations for financing and technology transfer. The first ship was delivered on 30 July 2009, second 23 January 2010 and third one on 15 December 2010. The first three were built at the Hudong Zhonghua Shipyard in Shanghai, China, while the last was built in Pakistan by Karachi Shipyard and Engineering Works (KSEW) and completed in 2013. The $750 million contract also includes 4-6 Harbin Z-9EC anti-submarine warfare (ASW) helicopters as well as ammunition for the frigates. According to one Chinese source Pakistan ordered four more F-22P frigates in 2007, although this has not been confirmed.
The lead ship, PNS ZULFIQUAR, was launched on 5 April 2008 and handed over to the Pakistan Navy on 30 July 2009. On the way to Pakistan, the frigate made a goodwill visit to Port Klang, Malaysia, in late August 2009. Another goodwill visit was made to the Port of Colombo, Sri Lanka, during which the PNS ZULFIQUAR's Commanding Officer Captain Zahid Ilyas visited the Commander of the Sri Lanka Navy, Vice Admiral Thisara Samarasinghe, at the Navy Headquarters on 5 September. PNS ZULFIQUAR arrived at Karachi, Pakistan, on 12 September 2009 and the commissioning ceremony was held on 19 September 2009.
The second frigate of the Zulfiquar class, PNS SHAMSHEER, was launched at Hudong Zhonghua Shipyard on 31 October 2008. On 19 December 2009 it was commissioned in a ceremony at Shanghai and arrived in Pakistan on 23 January 2010. The third frigate of the Zulfiquar class, PNS SAIF was handed over to the Pakistan Navy on 15 September 2010. The fourth and last Frigate PNS ASLAT was indigenously built at Karachi Shipyard and Engineering Works Limited and commissioned on 17 April 2013.
According to Admiral Noman Bashir, Chief of Naval Staff of Pakistan Navy, the Navy intends to expand its fleet of F-22P frigates from the current four by constructing more ships. These may be an improved variant incorporating features of the Type 054A frigate, possibly designated F-23P, for which discussions have been held between Pakistan and China.
Design
The F-22P hull uses many of the radar cross-section reduction features of China's Type 054 frigate to help it evade detection by radars mounted on other ships, aircraft and anti-ship missiles.
The 76.2 mm calibre main gun is a Chinese development of the Russian AK-176M, the main difference being that the Chinese variant adopts a re-designed stealthy turret to reduce radar cross-section. The gun is designed to engage ships, aircraft and anti-ship missiles. In front of the main gun are two 6-cell RDC-32 anti-submarine rocket launchers.
The frigate's primary surface-to-surface missile armament comprises eight C-802 subsonic anti-ship missiles carried in two launchers with four cells each, fitted between the foremast and the funnel. These containers are also compatible with the CY series anti-submarine rockets and may be loaded with a combination of anti-ship and anti-submarine weapons.
The FM-90N surface-to-air missile (SAM) system is fitted between the main deck and main gun. The launcher has eight cells each containing one missile and is fitted on a mount that can be elevated and traversed in the direction of the threat. The FM-90N can engage several targets, including supersonic and sub-sonic sea-skimming missiles, using different guidance modes simultaneously. The system is also designed to engage small targets such as unmanned aerial vehicles (UAV). However, the FM-90 has limited engagement angles as compared to a SAM fired from a vertical launch system. Also, the FM-90 has inferior range and is also non-reloadable, hence it is not suited for blue water patrol
A close-in weapon system (CIWS), the Type 730B, is mounted on the aircraft hangar. Comprising two seven-barrel Gatling guns of 30 mm calibre, the F-22P is believed to be the first ship armed with the Type 730B which uses off-mount sensors such as the Type 347G radar and the OFC-3 electro-optic director. The guns are mounted side-by-side on the aircraft hangar, with the off-mount sensors in between. The CIWS can be upgraded with the FL-3000N fire-and-forget missile system by installing up to two single-round FL-3000N launchers on each existing CIWS gun mount.
The Harbin Z-9EC anti-submarine warfare (ASW) helicopter is equipped with a surface-search radar, low frequency dipping sonar, radar warning receiver, doppler navigation system and armed with torpedoes. The helicopter can be armed with one torpedo on the starboard side. A small antenna on the roof may provide a data-link, allowing the Z-9 to act as a relay for targeting data between the ship and long range anti-ship missiles such as the C-802.
Pakistan 2013 10 Rs sg?, scott?
Sources: Wikipedia
